Managing Certificates

Overview

Login Enterprise uses certificates to provide increased security as a standard part of its infrastructure.

It is common for enterprises to use their own Certificate Authority (CA) and therefore Login Enterprise lets you customize which certificates are used.

Certificates are used by browsers for the Web UI and internal communications between the launchers and the targets being tested. The launcher installs it automatically and the target engine ignores SSL errors by default. However, the target engine stops ignoring SSL errors after importing your own certificate.

Default self-signed certificate

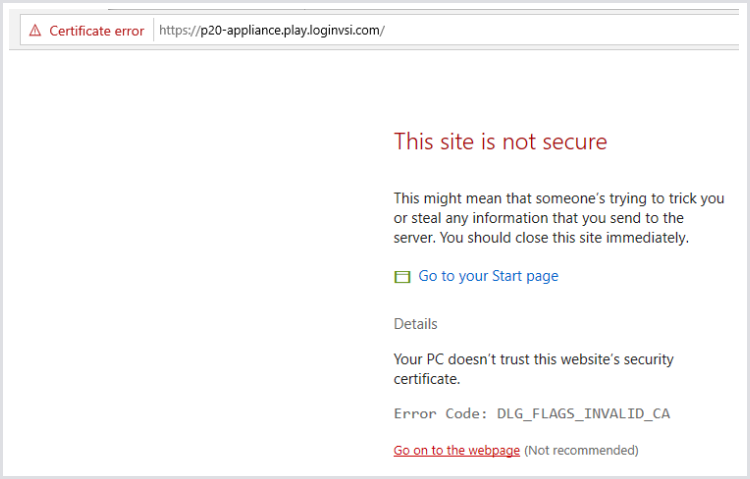

By default, Login Enterprise runs with a self-signed certificate on the virtual appliance. This lets you get Login Enterprise up and running quickly and requires you to proceed even though the certificate is untrusted.

Frame 184.png

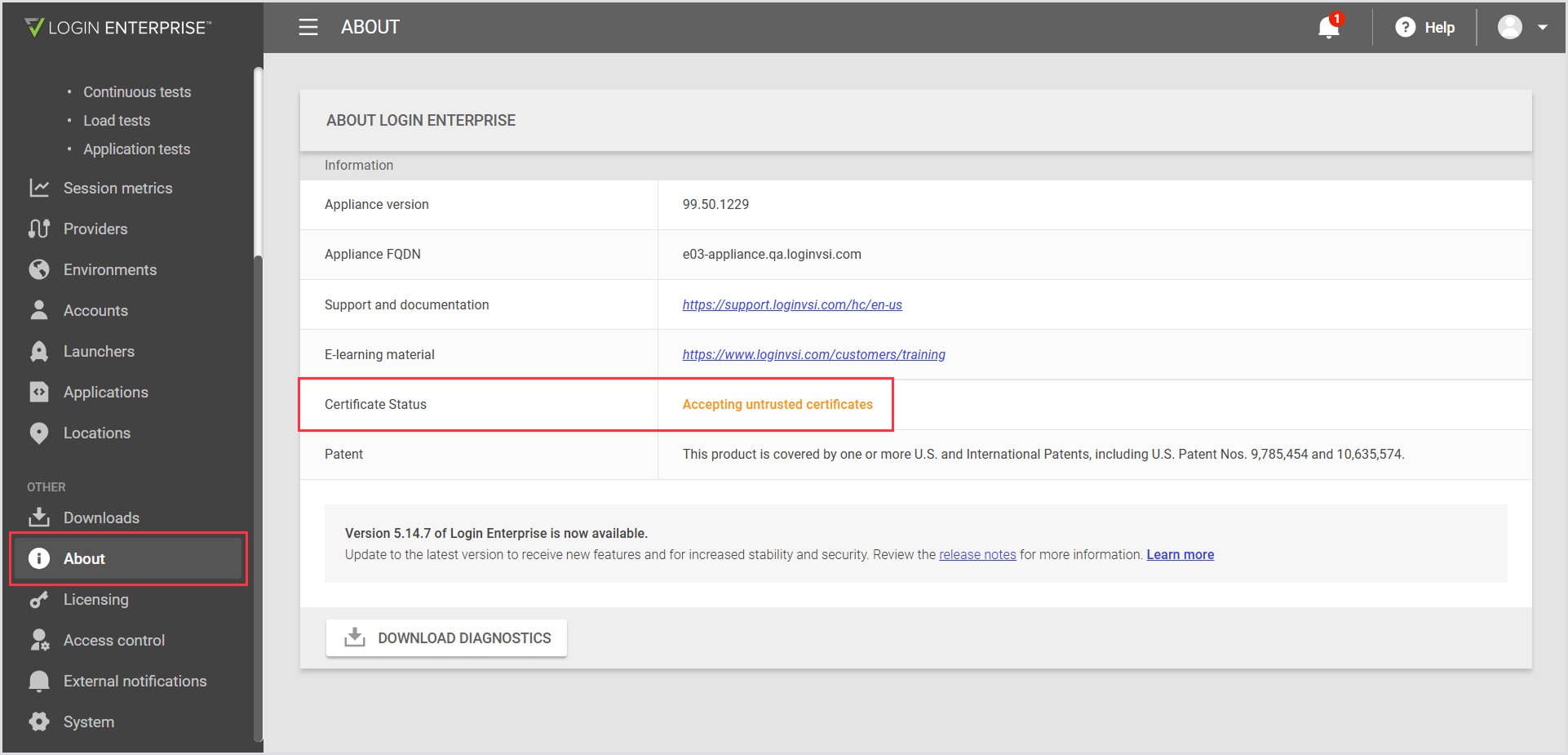

To verify the certificate status, in the Login Enterprise sidebar menu, navigate to Other > About.

Frame 182.png

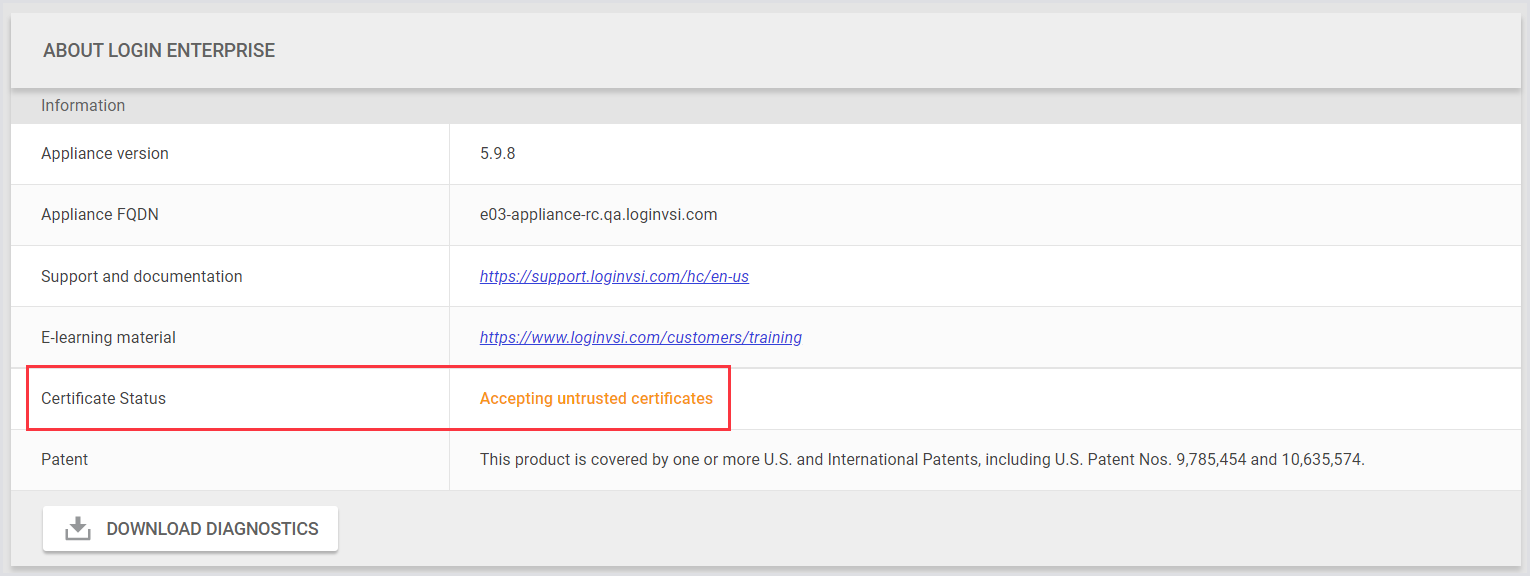

The certificate status will be available in the Information section:

Frame 183.png

Installing a new certificate

If your new certificate was issued by an internal Enterprise or Standalone CA, we recommend importing the root CA certificate and any intermediary certificates before proceeding with the new certificate install. This will ensure that the certificate chain is trusted on the appliance. For more information, see Importing a root CA certificate. For the certificate requirements, see Encryption technology.

Please note that the PFX should only contain the server certificate and server key

To install a new certificate:

  1. Log in to the appliance console or use SSH to connect as admin. For more information, see the Maintenance menu.
  2. Use WinSCP or an equivalent SFTP client to upload the pfx certificate to the /certificates folder in the root of the appliance, e.g. /certificates/mycert.pfx
    • If using WinSCP, select the SFTP protocol for the connection type
  3. Select Apply new certificate from the appliance console menu.
    a. Specify the full path to the pfx file, including the filename, e.g. /certificates/mycert.pfx, and press Enter.
    b. Specify the password for the pfx file and press Enter.

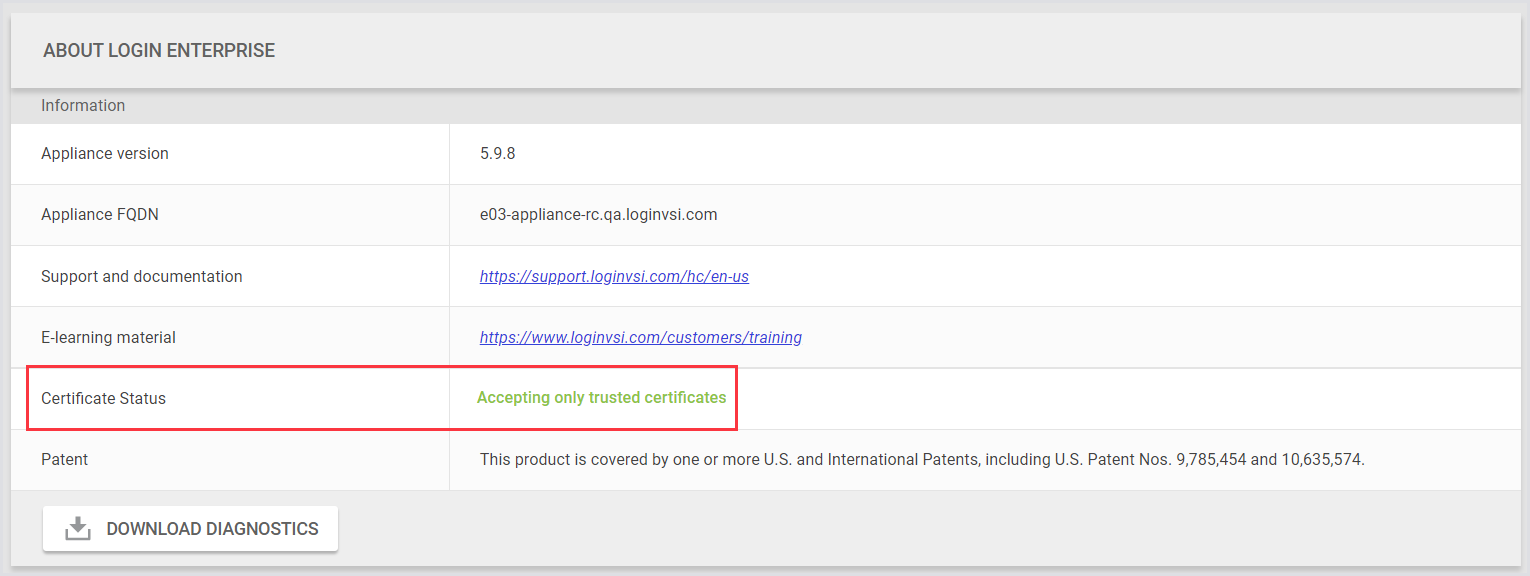

  4. This will automatically switch the product to use the Trusted SSL mode. To verify the certificate status, refresh the Web UI to see that it is trusted, or in the Login Enterprise sidebar menu, navigate to Other > About. The certificate status will be available in the Information section:

Frame 183 (1).png

Importing a root CA certificate

Login Enterprise lets you import root Certificate Authority (Root CA) certificates. This functionality is useful when you have an internal CA that generates certificates for your organization. Once a valid certificate is importedif you use an internal CASSL can be enabled for the AD authentication, Email, and Database configuration settings.

There are 3 areas in the Login Enterprise where you can enable SSL:

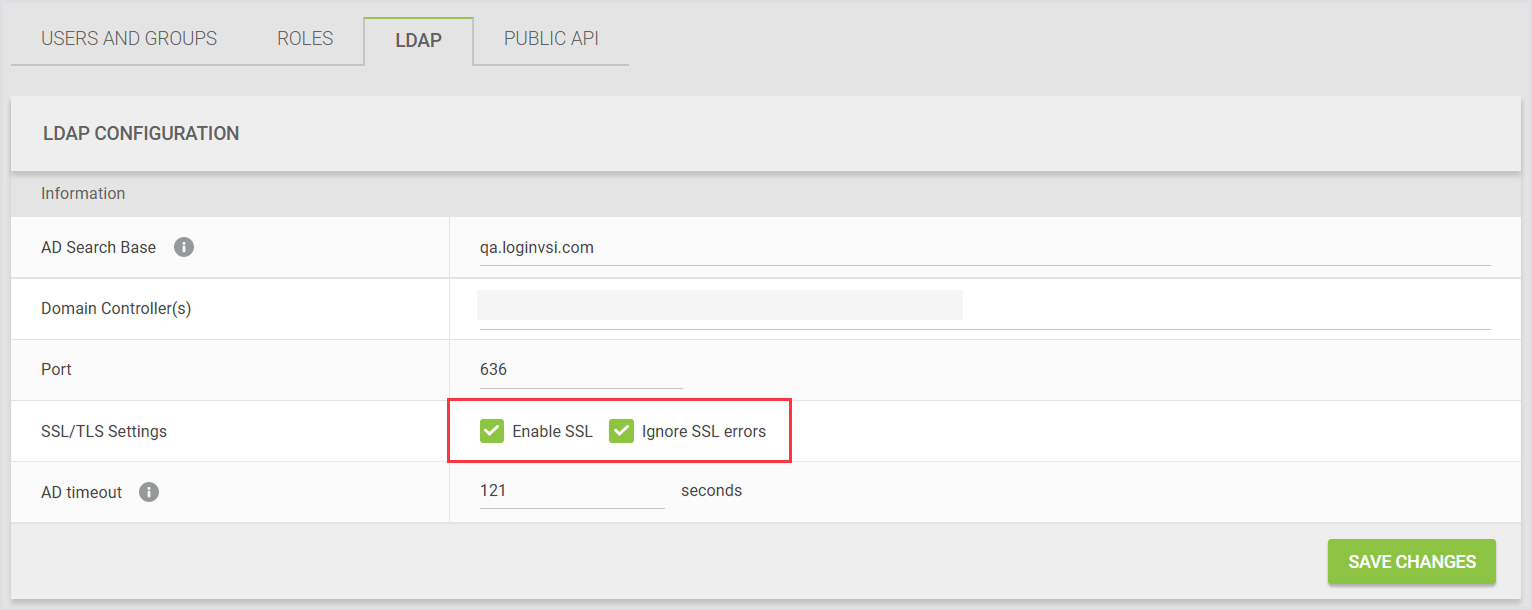

  • Access control

Frame 188.png

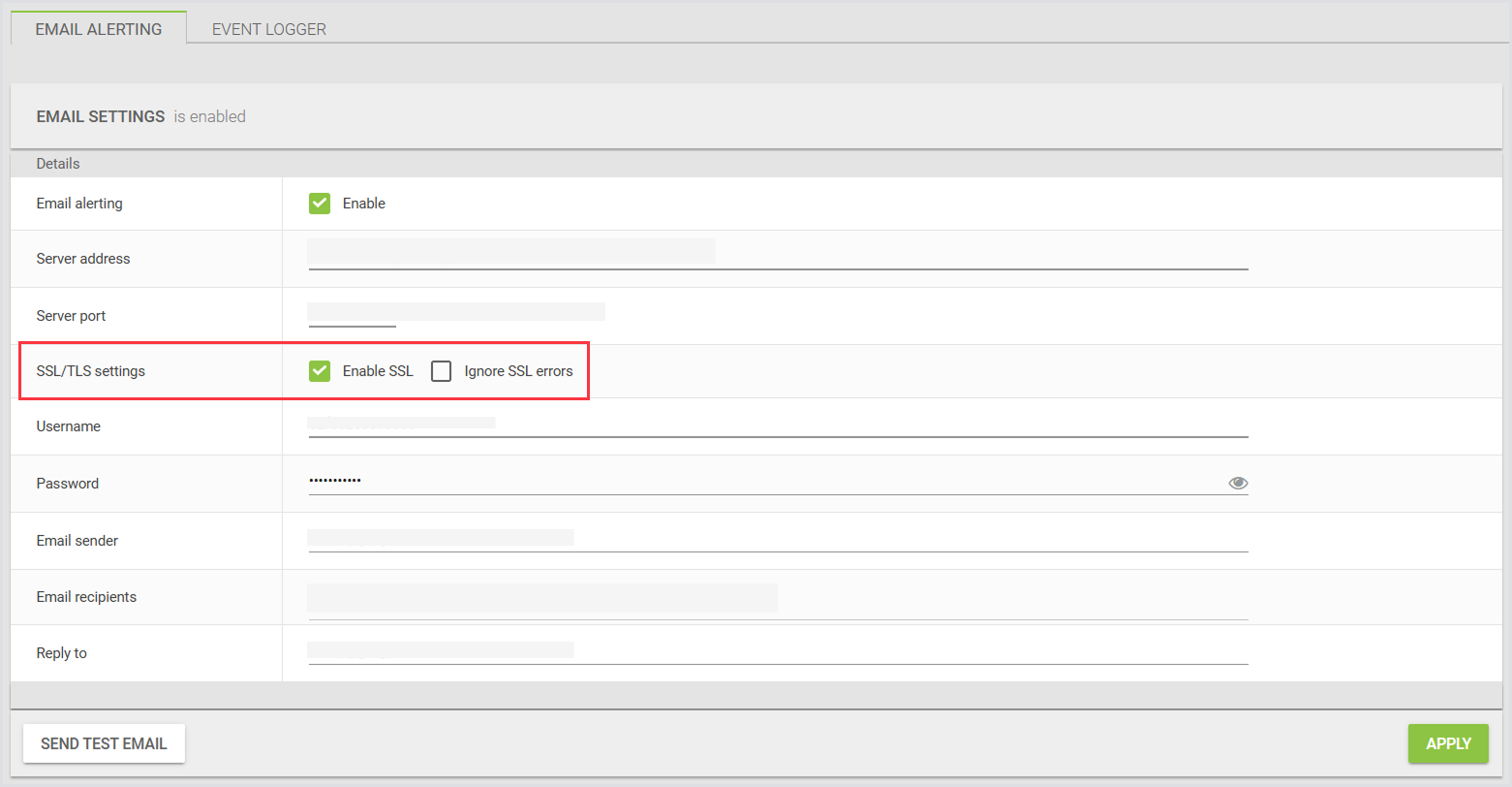

  • External notifications > Email alerting

Frame 186.png

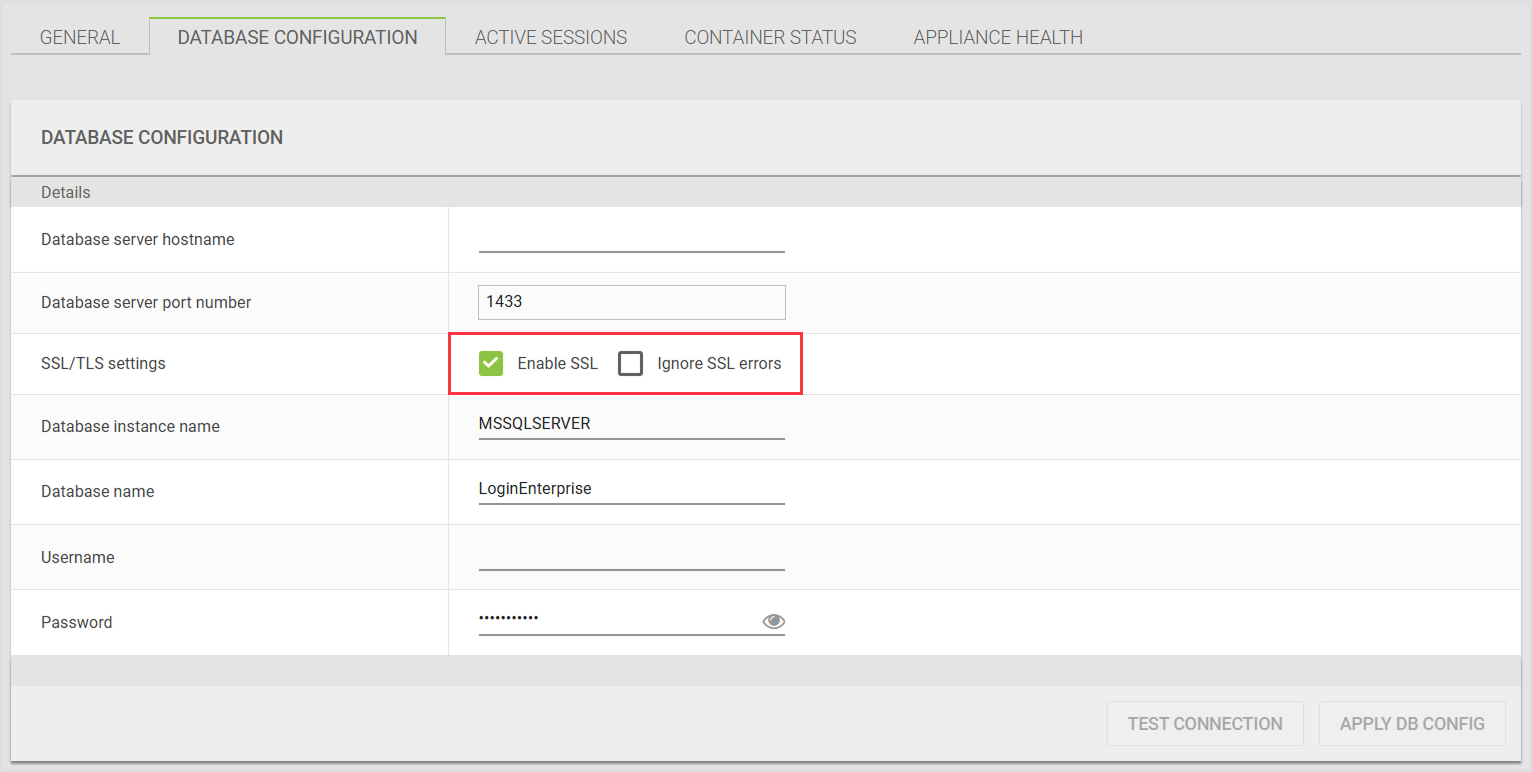

  • System > Database configuration

Frame 185.png

To import a root CA certificate:

  1. Use WinSCP or an equivalent SFTP client to upload a root CA certificate to the /certificates folder in the appliance, e.g. /home/admin/mycert.crt
  2. Log in to the appliance console. For more information, see the Maintenance menu.

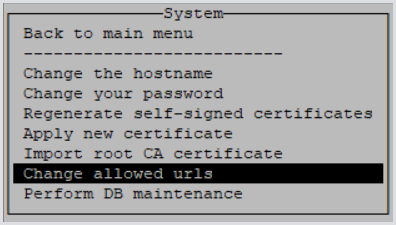

  3. Navigate to Main > System > Import root CA certificate.

    Frame 190.png

  4. Specify the full path to the newly uploaded .crt file, e.g. /home/admin/myCert.crt
  5. Restart the Login VSI services when prompted to apply the changes.

Frame 189.png

Switching back to self-signed certificates

At times certificate installation may fail. If this is the case and you'd like to reuse the self-signed certificate supplied with the appliance, take the following steps:

  1. Log in to the appliance console. For more information, see the Maintenance menu.
  2. Select Regenerate self-signed certificates from the appliance console menu.
  3. This will automatically reset the product to accept any SSL certificate.

Troubleshooting

Problems after applying a new certificate

For problems after applying a new certificate, first make sure your root CA and any intermediate certificates are properly imported/installed on the appliance.

If the certificate being applied was issued by an External CA (DigiCert, Sectigo, GlobalSign, etc.), make sure your appliance public certificates are up to date. For this, run apt install ca-certificates from Bash.

If the certificate was issued by an Internal Enterprise or Standalone CA, ensure the certificates in the trust chain (root and intermediates) have been uploaded to the appliance in the .pem (base64) format with the .crt extension and imported through the pdmenu > Import root CA certificate.

Frame 190.png

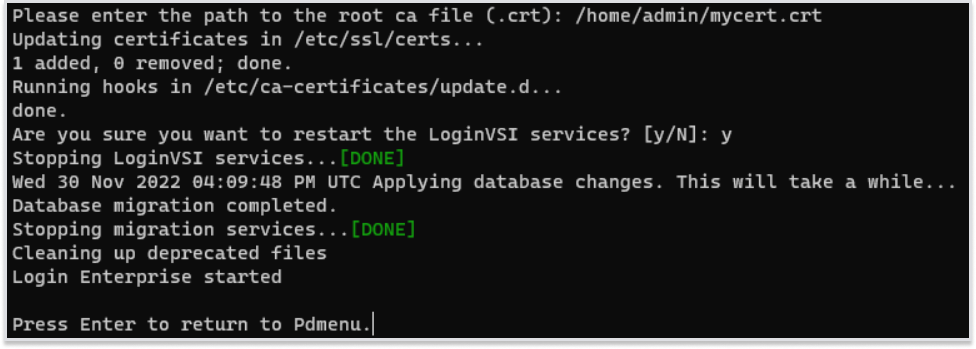

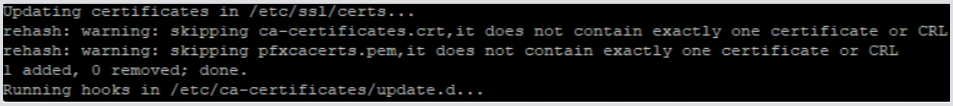

When a certificate is successfully imported, it should show 1 or more was “added.”

Frame 192.png

If it shows “0 added”, it could mean the certificate was already imported or that the certificate file extension was not .crt.

Frame 193.png

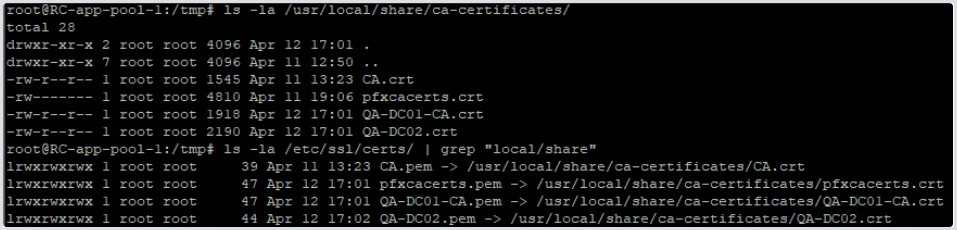

When using the Import root CA certificate option through pdmenu, the certificate will be copied to /usr/local/share/ca-certificates/, and a symbolic link to that file is created with the .pem extension in /etc/ssl/certs/. To verify that the certificates exist in the proper directory, run the commands below in Bash.

ls -la /usr/local/share/ca-certificates/

ls -la /etc/ssl/certs/ | grep "local/share"

Frame 194.png

Login Enterprise services not starting

If you've applied a new certificate and find that the Login Enterprise services are not starting or that services are started but do not get past the “starting x service” status, we recommend checking the list of allowed URLs along with the Appliance Guard (pi_guard) status. For more information, see the Login Enterprise 5.x 'Services not starting' common issues.

Allowed URLs

The allowed URLs list contains a list of URLs that are allowed to be used to access the Login Enterprise and can be modified in the System > pdmenu. The first entry in the allowed URLs list should contain the FQDN of the certificate that was applied to the appliance. The appliance uses the first entry in the allowed URLs list as the ServerURL in the appsettings.json file for applications like the launcher, eventlogger, and appliance guard.

Frame 191.png

Some certificate requirements

Whatever the SANs of your certificate are, they must be:

  1. DNS resolvable to your appliance, and
  2. One of them must be the first entry in your ALLOWED_URLS key in the /loginvsi/.env file.

If your local hostname is not listed in the SAN field, and you can't regenerate the certificate to include it, consider changing the hostname to match the certificate. However, your ALLOWED_URLS, and any client attempting to access the appliance, must use a name in the SAN field, if SAN exists. Otherwise, it must match the Subject field.

If you change the hostname, make sure you reset pi_guard along with restarting services to get the containers recomposed.

systemctl restart pi_guard
loginvsid restart

If you have questions or need additional information about the certificates, feel free to contact our support at support@loginvsi.com.
