SPECviewperf | GPU Benchmark Workload

This workload automates the execution of SPECviewperf (SVP) benchmarks and uploads the results as Platform Metrics to Login Enterprise. It provides an objective and standardized benchmarking process that is quick to configure, yielding valuable insights for baselining, performance comparisons, and configuration assessments.

Key features:

• Self-contained execution: Runs specified SPECviewperf view sets and handles results automatically.
• Data integration: Uploads benchmark results as Platform Metrics to Login Enterprise.
• Quick configuration: Requires minimal setup by updating variables at the top of the script.
• Objective analysis: Facilitates easy comparison across different GPUs, environments, and configurations.

Note that this document uses the terms script, workload, and Login Enterprise Application interchangeably. They all refer to the specViewPerf_Benchmark.cs file that automates the benchmarking process.

For more details about the SPECperfview GPU benchmark workload, refer to the Login VSI repository on GitHub.

The script performs the following steps:

1. Check and terminate existing processes

   • Checks if runviewperf.exe or viewperf.exe processes are already running.
   • Optionally terminates existing processes if configured to do so.

2. Archive existing results

   • Moves any existing results_* (previous SVP Test run(s)) directories from the SPECviewperf directory to an archive directory.
   • Ensures no residual result directories remain after archiving.

3. Run SPECviewperf

   • Initiates the RunViewperf.exe process with the specified viewset and resolution.
   • Confirms the process starts within a specified timeout period.
   • Records the start timestamp upon process initiation.
   • Monitors the process until completion, enforcing a maximum runtime limit.
   • Records the end timestamp when the process concludes.

4. Create Start and End event

   • Logs an event containing the start time, end time, viewset name, and host/user information.

5. Check for results and JS file

   • Waits for the results_* directory to be created after benchmarking.
   • Locates the *.js results file within the directory.

6. Wait for the JS file to be ready

   • Monitors the *.js file to ensure it is fully written and stabilized in size before proceeding.

7. Parse JS file

   • Parses the *.js file to extract benchmark data.
   • Adjusts timestamps to UTC based on the specified time offset.
   • Prepares the data for uploading to Login Enterprise.

8. Generate PowerShell script

   • Creates a PowerShell script to upload the benchmark data to the Login Enterprise API.

9. Upload Platform Metrics

   • Executes the PowerShell script to upload the data as Platform Metrics to Login Enterprise.

Update the following variables at the top of the script to match your environment:

• string timeOffset = "0:00";
  Time offset from UTC in hours:minutes. Adjusts timestamps to your local time zone. For example:

  • "-7:00" for Pacific Standard Time (PST).
  • "+7:00" or "7:00" for UTC+7.

• string configurationAccessToken = "**********";

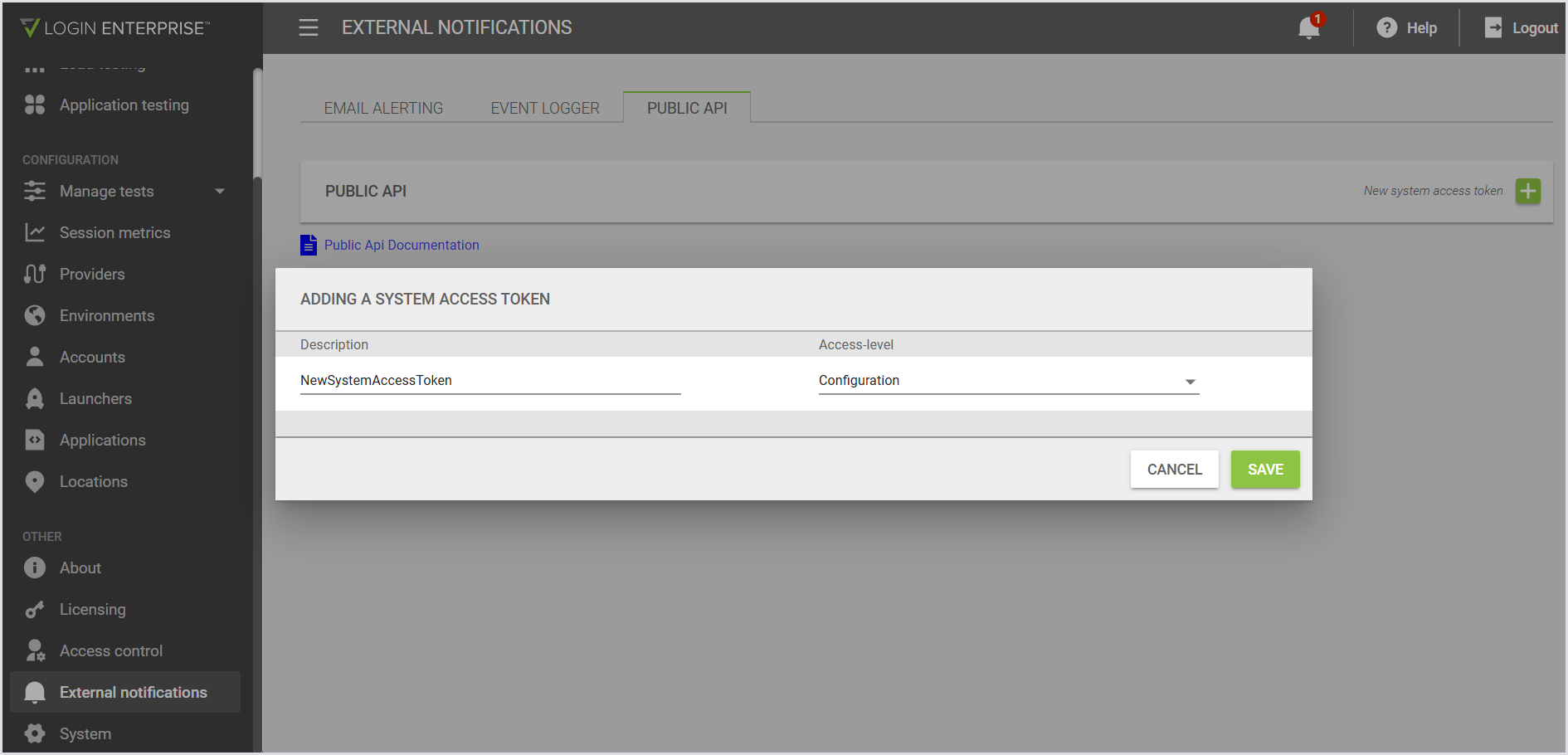

  Your configuration access token for the Login Enterprise API. To obtain:

  1. Log in to Login Enterprise.
  2. Navigate to External notifications > Public API.
  3. Click New system access token.
  4. Provide a name and select Configuration from the Access level dropdown.
  5. Save and copy the token provided. Store it securely.

• string baseUrl = "https://myLoginEnterprise.myDomain.com/";
  The base URL of your Login Enterprise instance, including the ending slash.

• string environmentId = "**********";
  Your environment key/ID in Login Enterprise. To obtain:

  1. Log in to Login Enterprise.

  2. Navigate to Configuration > Environments.

  3. You have two options:

     • Option A: Use an existing Environment.

       • Click on the desired Environment.
       • The environment ID is the unique identifier at the end of the browser's address bar URL (e.g., 3221ce29-06ba-46a2-8c8b-da99dea341c4).

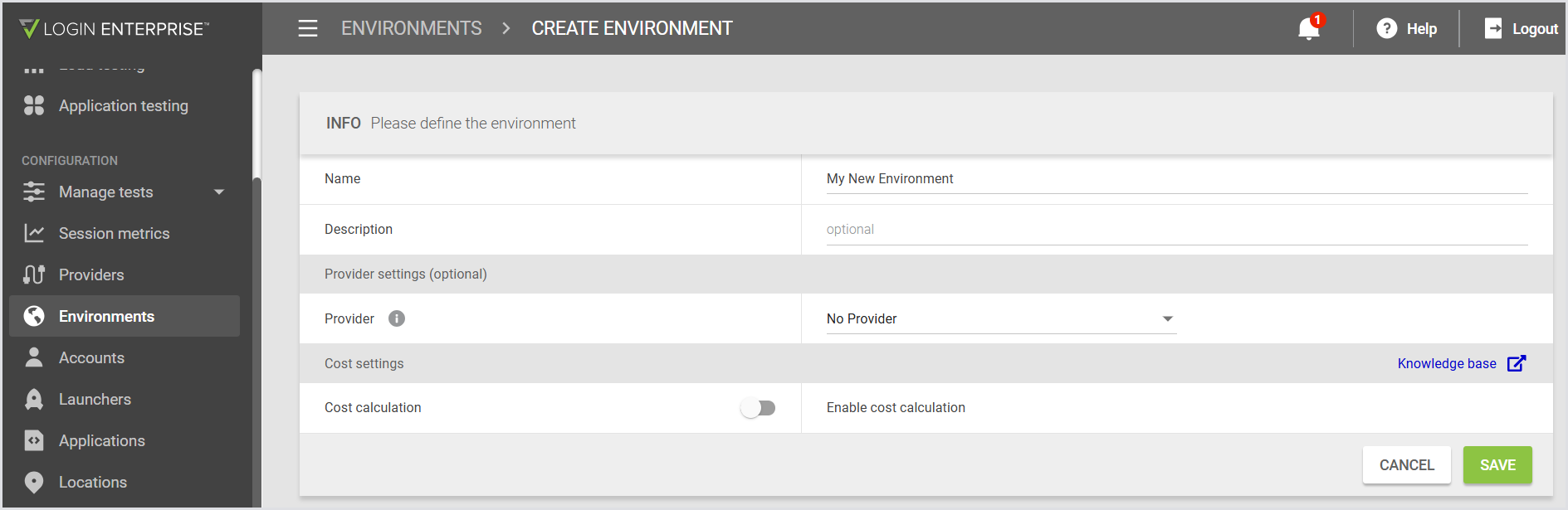

     • Option B: Create a new Environment.

       • Click Add Environment.
       • Fill out the required information (only Name is necessary).
       • Click Save.
       • After saving, the unique environment ID will be at the end of the browser's address bar URL.

For more information on Environments, see the Environments.

• string viewsetName = "snx";
  The SPECviewperf viewset to run. Examples include "snx", "sw", "maya", etc.

• string resolution = "1920x1080";
  The resolution for the benchmark. Options include resolutions like "1920x1080" or "native".

• string svpDirPath = @"C:\SPEC\SPECgpc\SPECviewperf2020";
  The installation directory path for SPECviewperf and RunViewperf.exe.

Before running the script, perform the following setup steps:

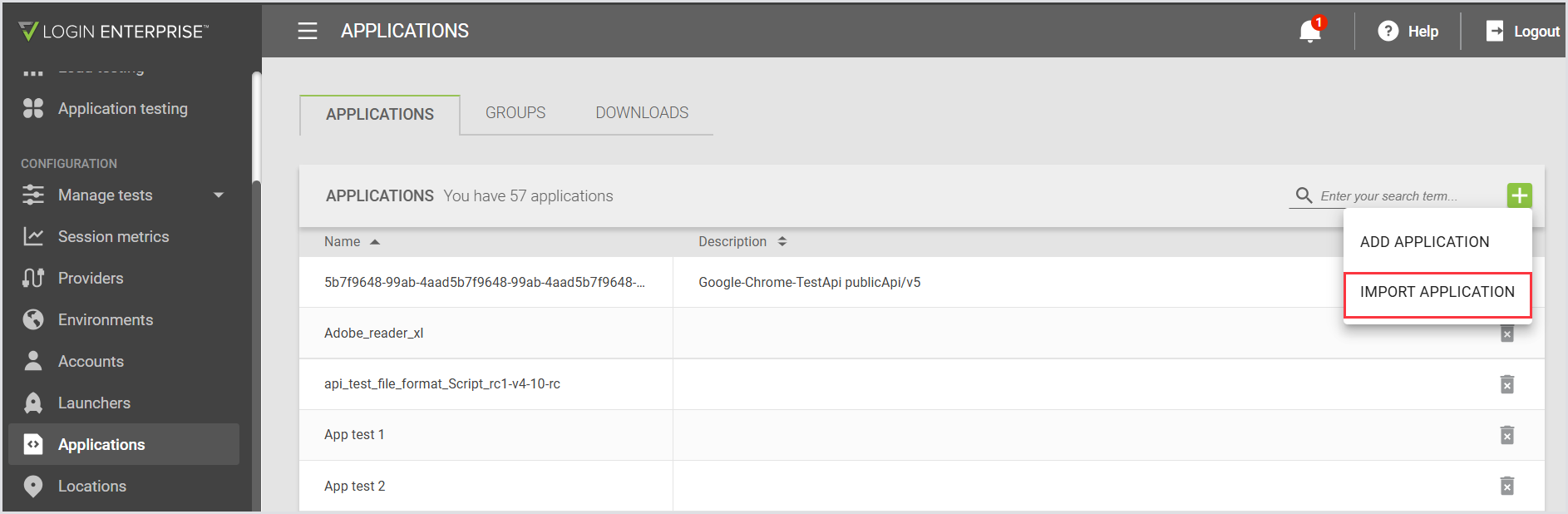

• Upload the Workload script: Import the specViewPerf_Benchmark.cs script to Login Enterprise under Configuration > Applications.

• Login Enterprise version: This script has been tested with Login Enterprise version 5.13.

• SPECviewperf installation: SPECviewperf must be installed and properly configured on the target machine.

• SPECviewperf licensing: Before installing and using SPECviewperf for this testing, review your SPECviewperf licensing agreement to ensure that you are correctly licensed for this usage.

• Access Tokens and IDs: Obtain a configuration access token and environment ID from your Login Enterprise instance.

• Quick configuration: Minimal setup required. Update a few variables, and you're ready to run the benchmark.

• Objective benchmarking: Utilizes SPECviewperf for standardized GPU performance metrics.

• Data integration: Automatically uploads results as Platform Metrics to Login Enterprise for centralized analysis.

• Performance analysis: Facilitates baselining and comparative analysis across different environments, GPUs, and configurations.

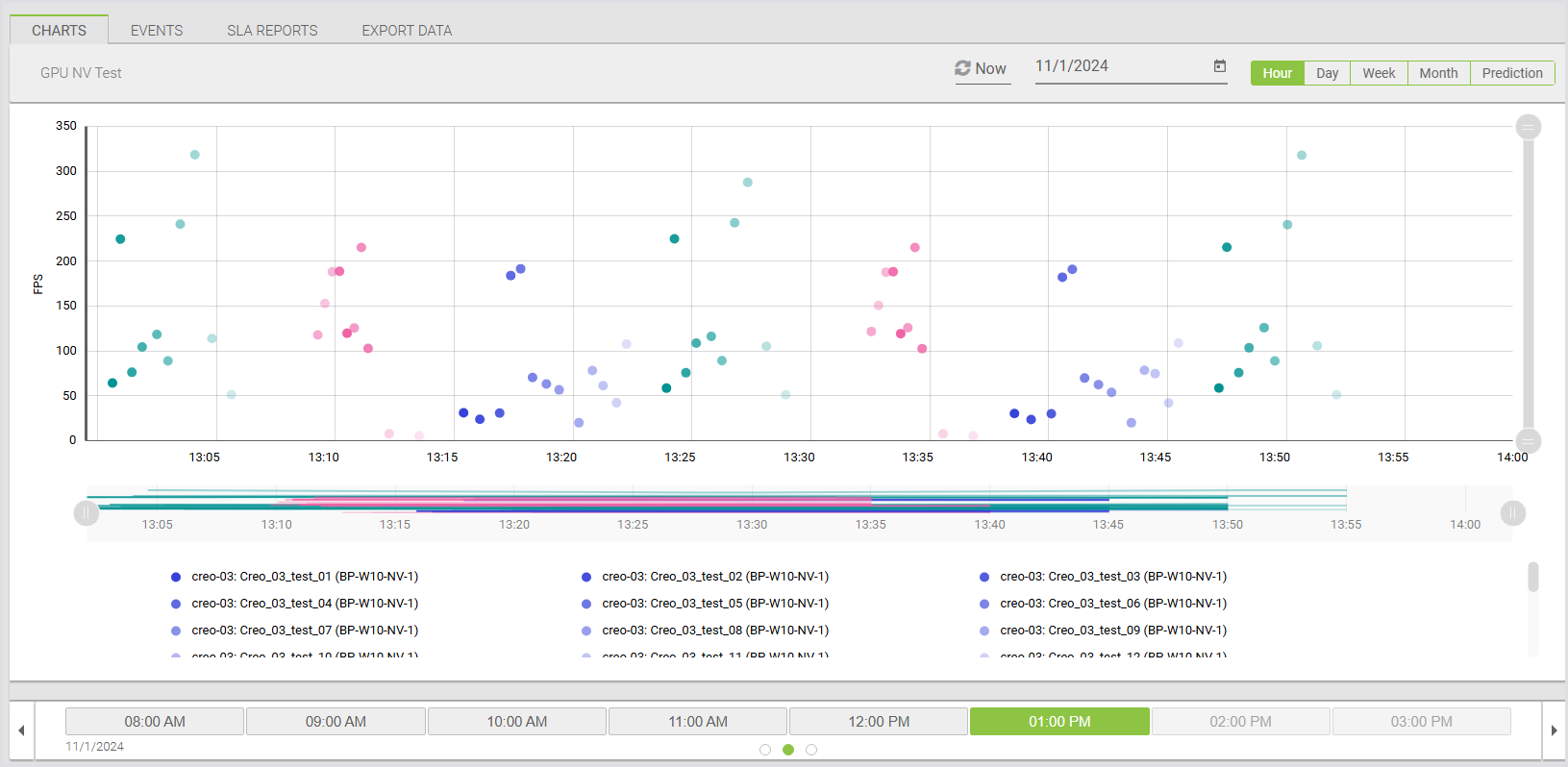

Figure: Platform Metrics displayed over an hour timeframe.

Figure: Platform Metrics displayed over a day timeframe.

Notes

• Modify the configurable variables at the top of the script to suit your environment.

• Ensure that the target machine meets all requirements for running SPECviewperf.

• The script includes error handling to gracefully handle unexpected conditions.

• Method breakdown:

  • The script uses nested methods within the Execute() method, each responsible for a specific part of the workflow, as detailed in the Script workflow.

• Best practices:

  • The script follows best practices regarding error handling, resource management, and modular code structure.

  • Variables are clearly defined and documented for ease of configuration.
