Overview

Deploying a VHDX on Microsoft Hyper-V involves creating a virtual machine (VM) and attaching the VHDX file to it. Below are step-by-step instructions to help you through the process.

Step 1: Download the VHDX File

Download the appropriate VHDX file from the Login VSI Support Center (Please note that to access the Downloads page, you need to sign in). Save the VHDX file in a place accessible from your Hyper-V host.

Step 2: Open Hyper-V Manager

Launch Hyper-V Manager: Open Hyper-V Manager on your Windows server. You can find it by searching in the Start menu.

Step 3: Creating a New Virtual Machine

1. Start the New Virtual Machine Wizard:

In the Hyper-V Manager, right-click on your hostname in the left-hand pane, then select New > Virtual Machine. This will open the New Virtual Machine Wizard.

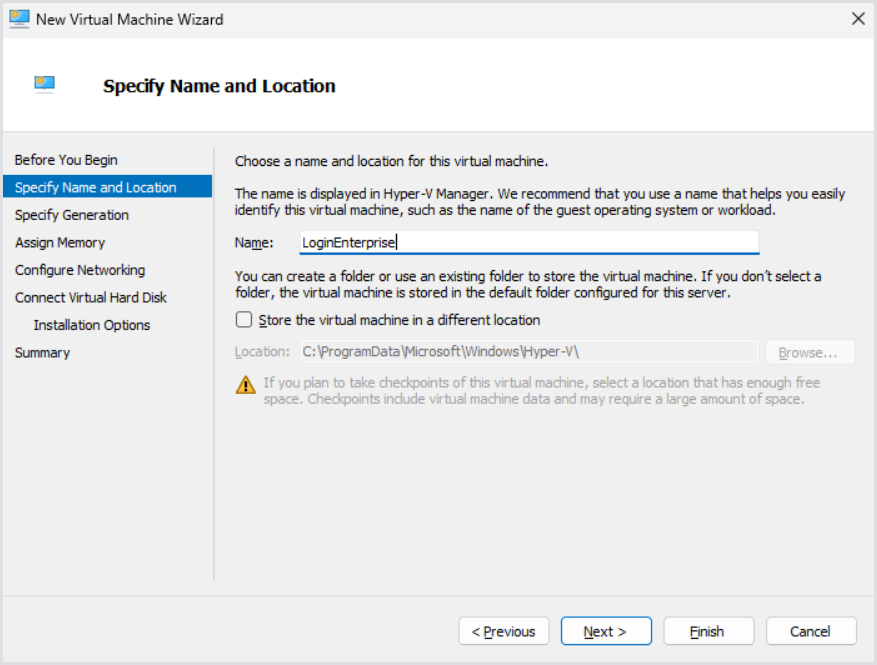

2. Specify Name and Location:

  • Name: Enter a name for your Virtual Machine.
  • Location: Choose the folder where you want to store the VM configuration files. Click Next.

Frame 321.png

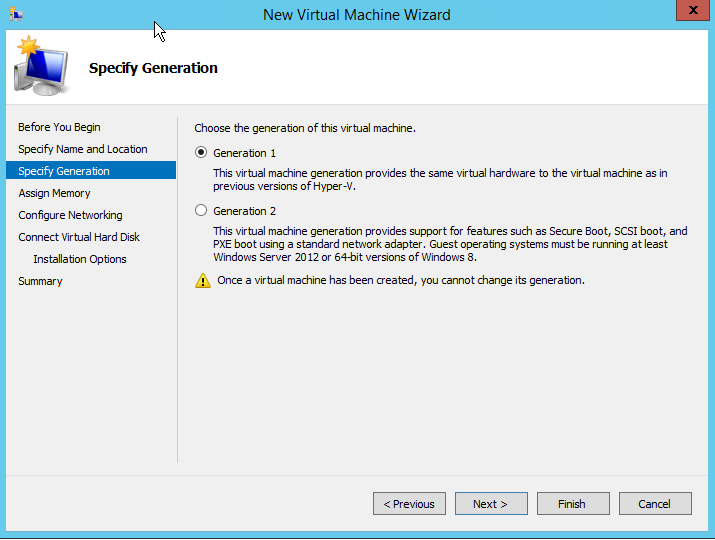

3. Specify Generation:

Select Generation 1, and Click Next.

Generation 1 uses a legacy BIOS-based boot architecture, making it compatible with older systems and software. In Azure, it is suitable for workloads requiring legacy configurations but lacks faster boot times and enhanced security features. Ideal for infrastructures where UEFI support is unnecessary.


4. Assign Memory:

  • Specify the amount of startup memory for the VM. For example, enter 8192 MB for 8 GB of RAM.
  • Optionally, enable Dynamic Memory if required. Click Next.

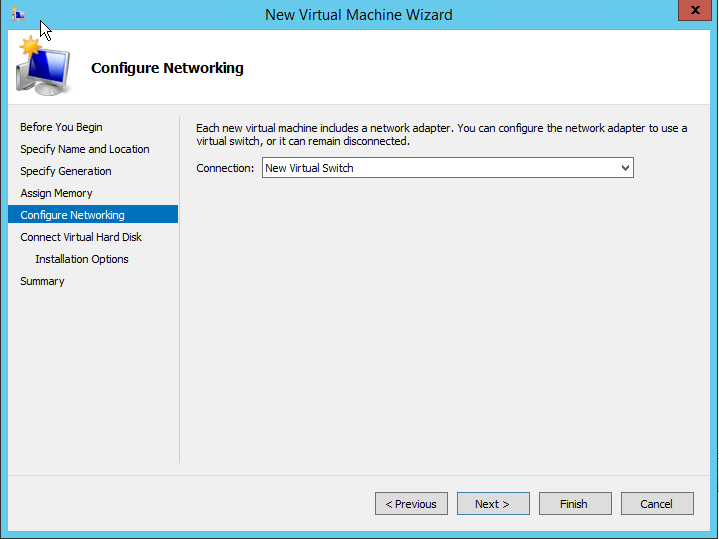

5. Configure Networking:

Choose a virtual switch for the VM to connect to. If you don’t have one configured, you can set it up later. Click Next.

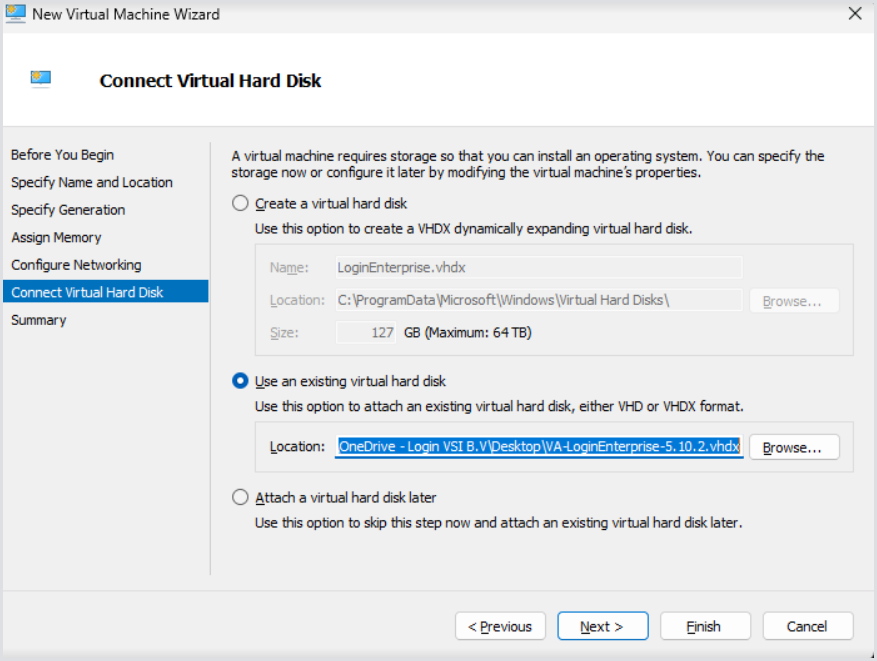

6. Connect Virtual Hard Disk:

  • Select Use an existing virtual hard disk.
  • Browse and select your VHDX file. Click Next.

Frame 322.png

7. Summary:

Review your settings and click Finish to create the virtual machine.


Step 4: Configuring Virtual Machine Settings

1. Adjust VM Settings: Right-click the newly created VM in Hyper-V Manager and select Settings.


2. Go to the Processor settings and scale the number of virtual processors to a minimum of 4.

3. Click OK, and start your virtual machine.


Step 5: Starting the Virtual Machine

1. Start the VM: Right-click the VM and select Start.

2. Connect to the VM: Right-click the VM again and select Connect to open the Virtual Machine Connection window.

3. Complete the Setup: Follow the on-screen instructions to complete the setup of the operating system inside the VM.

Step 6: Install Hyper-V Integration Services (if needed)

1. Install Integration Services: If the guest operating system doesn't have Hyper-V Integration Services installed, you may need to install it. This enhances the performance and compatibility of the VM.

  • In the Virtual Machine Connection window, go to Action > Insert Integration Services Setup Disk
  • Follow the prompts inside the VM to install the services.

Additional tips

  • Networking Configuration: Make sure to configure your virtual network settings to allow the VM to communicate with other machines on your network.
  • Backup: Regularly back up your VHDX files and VM configuration to prevent data loss.

By following these instructions, you should be able to successfully deploy a VHDX file on Microsoft Hyper-V. If you encounter any specific issues, please refer to Hyper-V documentation or reach out to our support at support@loginvsi.com
