Deploying an OVA Template on Citrix XenServer

Overview

Prerequisites

Steps

Overview

Deploying an OVA template on Citrix XenServer involves importing the OVA file, configuring various settings, and starting the virtual machine (VM). Below are step-by-step instructions to help you through the process.

Prerequisites

1. Citrix XenServer: Ensure that your Citrix XenServer is properly installed and running.

2. XenCenter: Install XenCenter on your management workstation.

3. OVA File: Download the OVA template you wish to deploy.

Steps

1. Launch XenCenter:

Open XenCenter on your management workstation and connect to your XenServer.

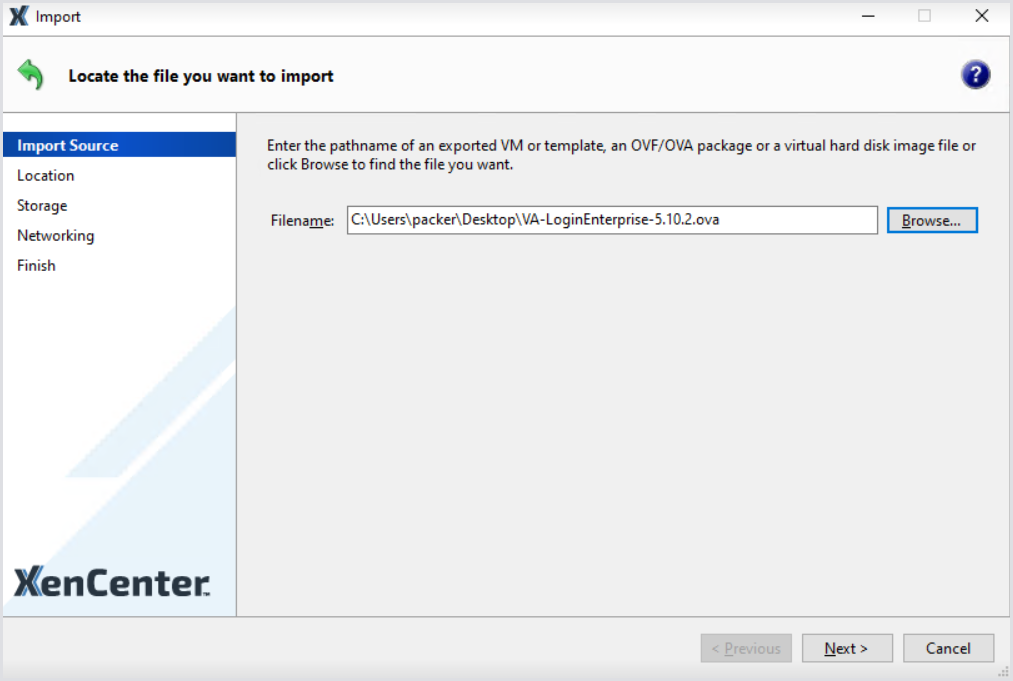

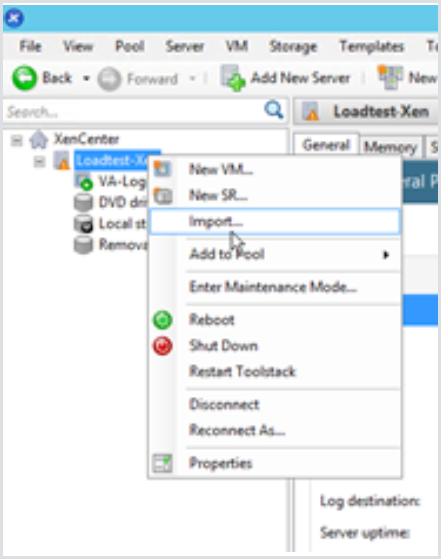

2. Import the OVA File:

  • Navigate to the File menu and select Import.


  • In the Import wizard, browse to the location of your OVA file and select it. Click Next.

Frame 325.png

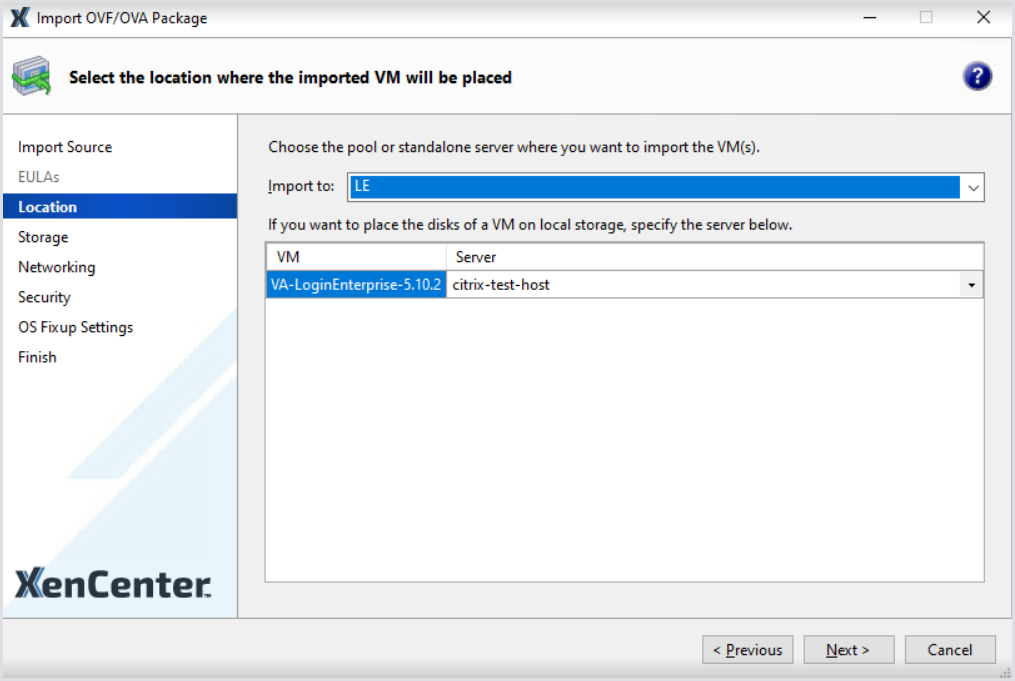

3. Select a Server:

  • Choose the XenServer where you want to deploy the Login Enterprise Virtual Appliance, and click Next.

Frame 326.png

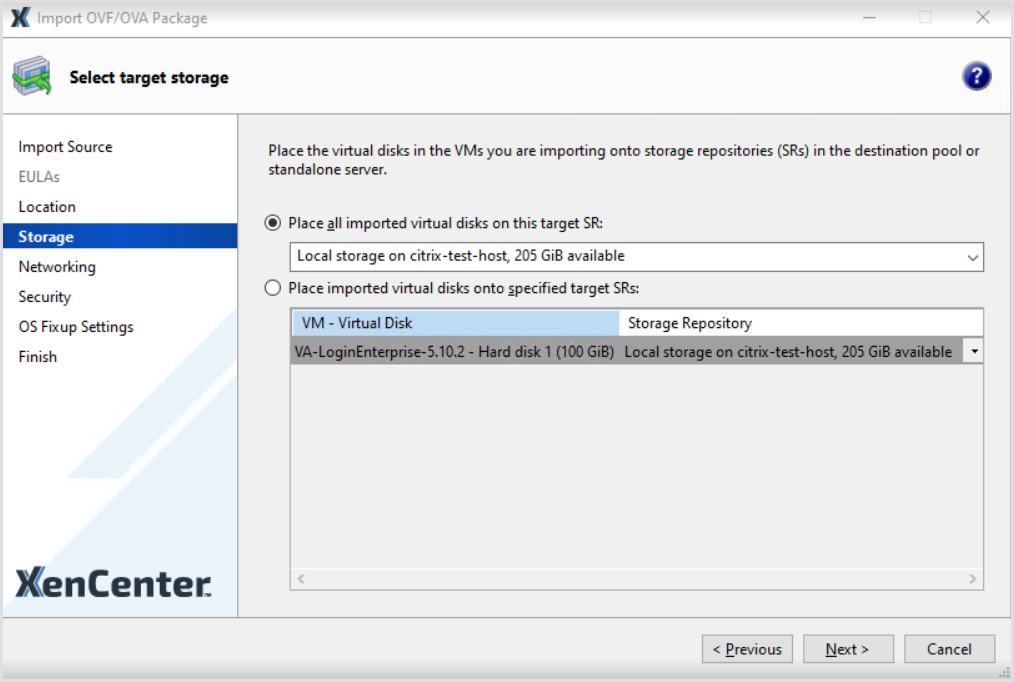

4. Storage configuration:

  • Select the storage repository (SR) where you want the virtual machine (VM) to reside. Click Next.

Frame 327.png

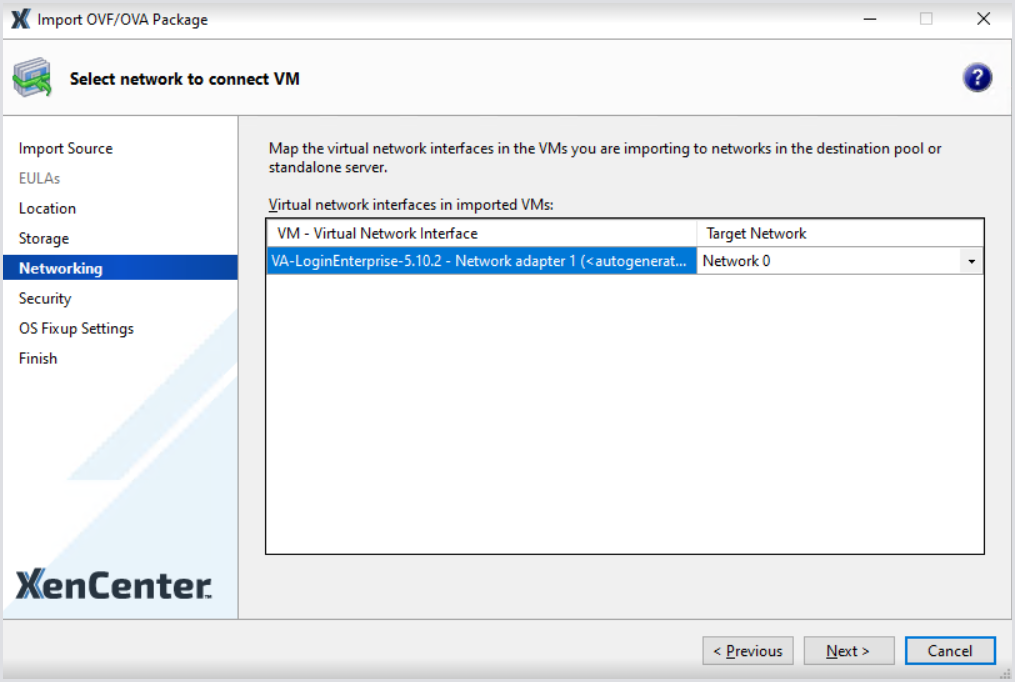

5. Network configuration:

  • Assign the appropriate network settings to the VM. Choose the network interface card (NIC) that the VM will use to connect to the network. Click Next.

Frame 328.png

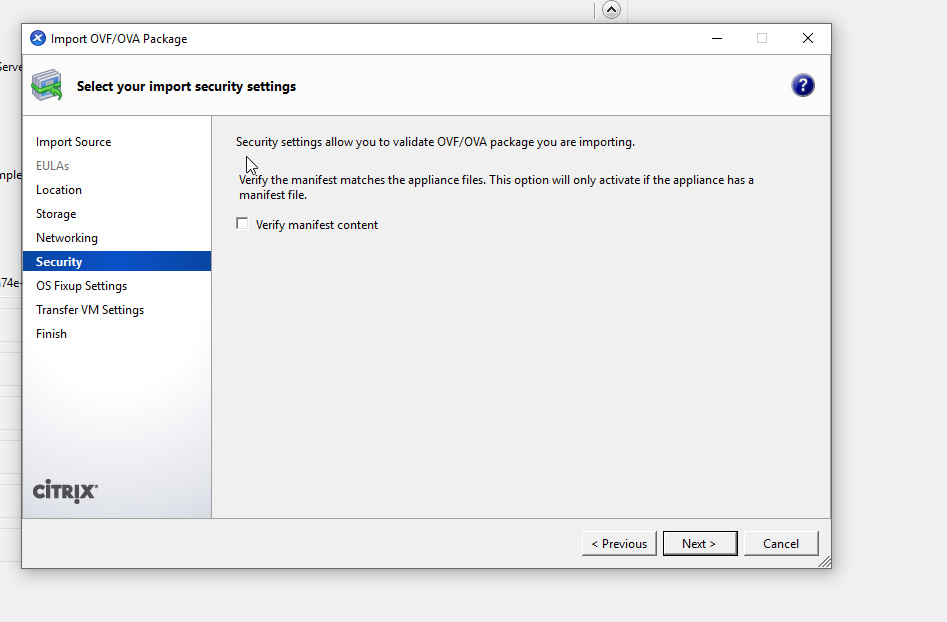

6. Security configuration:

  • Validate OVF/OVA Package:
    • You will see a window titled "Security settings allow you to validate OVF/OVA package you are importing."
    • Verify the manifest matches the appliance files: This option will only be available if the appliance has a manifest file.
    • Verify Manifest Content:
      • Check the box labeled "Verify manifest content" to ensure that the manifest file matches the appliance files. This verification helps ensure the integrity and authenticity of the OVA package. Click Next.

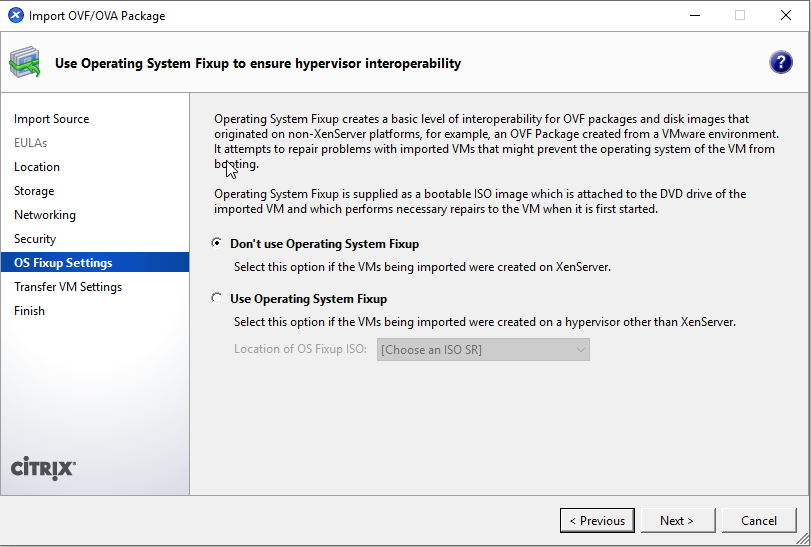

7. OS Fixup Settings:

  • In the OS Fixup settings window, ensure that the option Don’t use Operating System Fixup is selected.
  • This setting ensures that no additional fixup operations are performed on the operating system of the imported VM. Click Next.

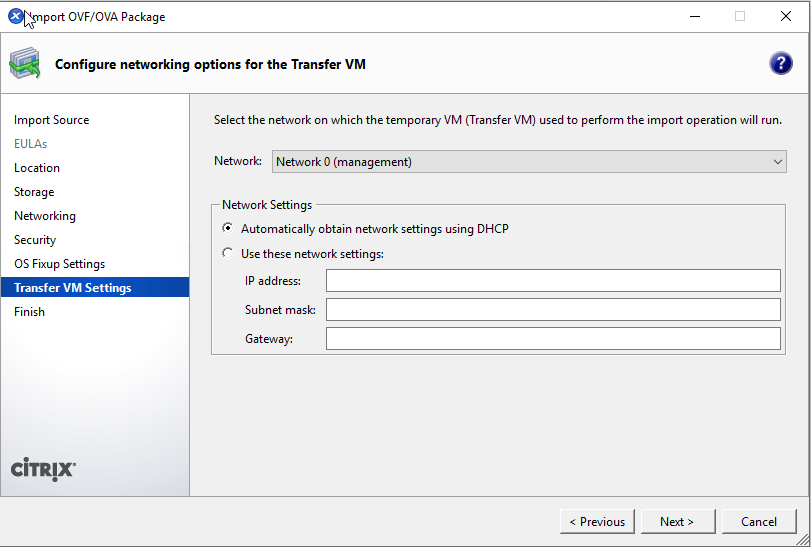

8. Transfer VM Settings:

  • In the Transfer VM Settings window, leave the option Automatically obtain network settings using DHCP selected.
  • Note that setting up the NIC for the Virtual Appliance will be done from the console after the machine is started. Click Next.


9. Finish:

Review the configuration settings you have chosen. If everything looks correct, click Finish to start the import process.

10. Monitor the Import Process:

The import process will begin, and you can monitor its progress in XenCenter. This may take some time depending on the size of the OVA file and the performance of your XenServer.

11. Start the VM:

Once the import process is complete, the new VM will appear in XenCenter. Select the VM and click the Start button to power it on.

12. Post-Deployment Configuration:

After the VM starts, configure the NIC for the Virtual Appliance from the console according to your network requirements. You may also need to configure additional settings such as network configuration, installing VM tools, and other customization according to your needs.

13. Verify the Deployment:

Verify that the VM is running correctly. Check for proper network connectivity, disk performance, and other parameters to ensure the VM is operating as expected.

By following these instructions, you should be able to deploy an OVA template on Citrix XenServer smoothly. If you encounter any specific issues, please refer to the Citrix XenServer documentation or reach out to our support at support@loginvsi.com.
