Summary

This article will describe where to configure the target session logoff storm duration with un-customized Official Workloads the in the Login VSI Management Console

Steps

1. Open the Login VSI Management Console

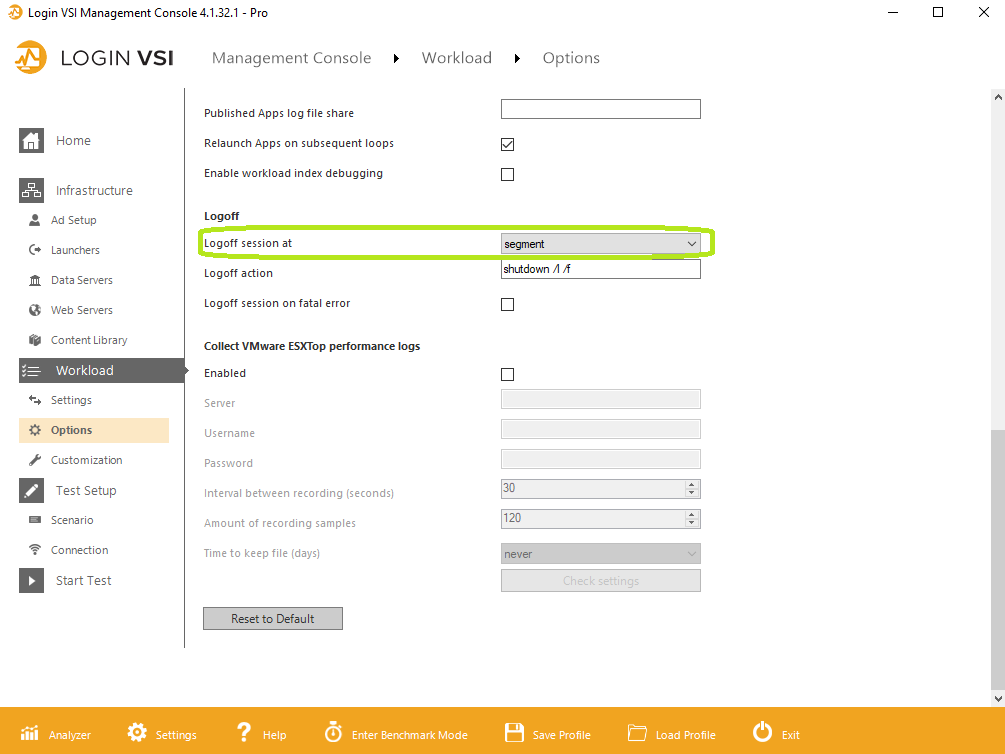

2. Locate the Logoff session at setting. For example:

The options in the drop-down menu are:

Segment

By default, the setting is set to Segment, which means the target sessions should all perform the logoff command within 12 minutes, staggered, as the duration of 1 segment in the un-customized Login VSI Official Workloads is 12 minutes. The official workloads are: Knowledgeworker, Taskworker, Officeworker, and Powerworker

Timer

This is the same as Segment described above, but all target sessions should all perform the logoff command within 3 minutes, staggered, as the interval duration between VSItimers is 3 minutes in the un-customized Login VSI Official Workloads.

Loop

This is the same as Segment described above, but all target sessions should all perform the logoff command within 48 minutes, staggered, as the duration of one workload loop/iteration is 48 minutes in the un-customized Login VSI Official Workloads.

Properties

Applies to

Login VSI 4.x
